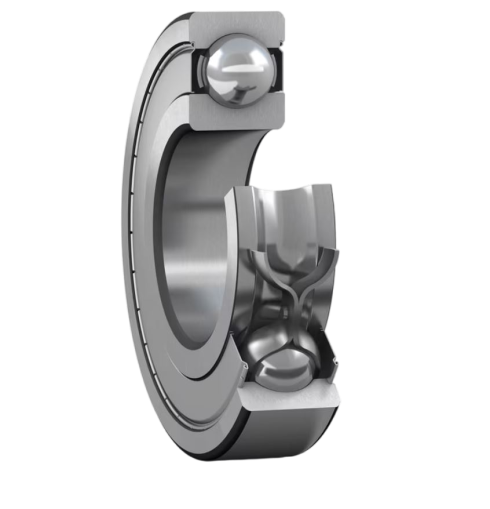

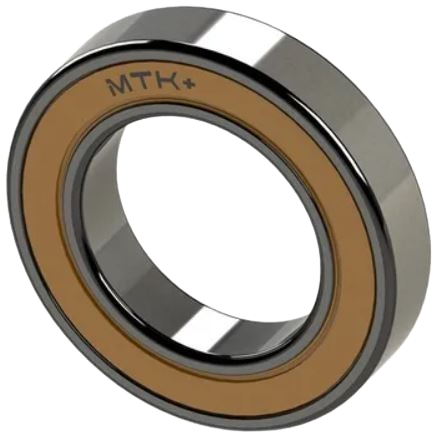

DEEP GROOVE BALL BEARINGS

Available series number:

600 / 6000 / 6200 / 6300 / 61800 / 61900 / 16000

Suffix:

‐ N: Snap ring groove
‐ NR: Snap ring groove with snap ring
‐ RS: Seal on one side | ‐ 2RS: Seals on two sides
‐ Z: Shield on one side | ‐ 2Z: Shields on two sides
‐ M: Machined brass cage guide on the rolling elements
‐ MA: Machined brass cage guide on the outer ring
and 25 tons per axle.

SELF ALIGNING BALL BEARINGS

Available series number:

1200/ 1300/ 2200/ 2300

Available Versions:

Open: Standard version of the basic design
2HS: Sealed
K: Tapered bore (taper 1:12)
K- 2HS: Combination of the above

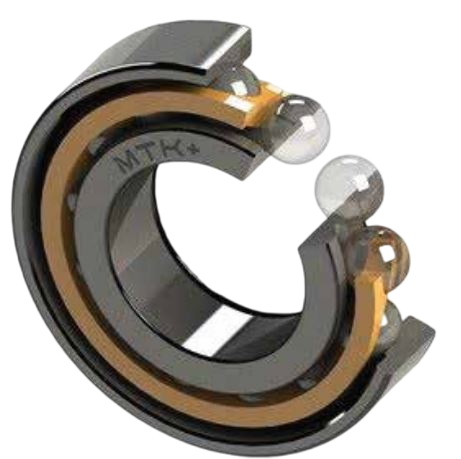

SINGLE & DOUBLE ROW ANGULAR CONTACT BALL BEARINGS

Available series number:

Single: 7000/ 7200/ 7300 Double: 3200/ 3300

Available Versions:

Open: Standard version contact angle of 400
2HS: Sealed
K: Tapered bore (taper 1:12)
K- 2HS: Combination of the above

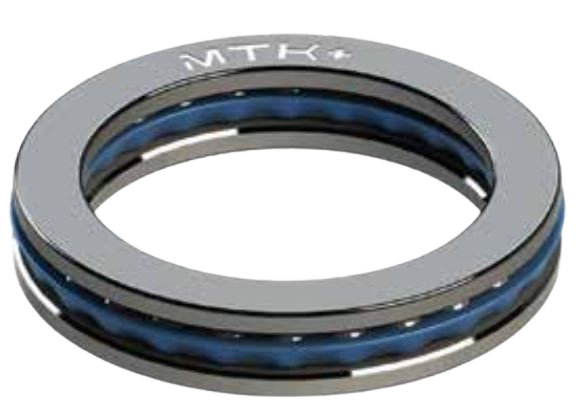

THRUST BALL BEARINGS

Available series number:

Single Acting: 51100/ 51200/ 51300/ 51400

Available Versions:

Double Acting:
52200/ 52300/ 52400

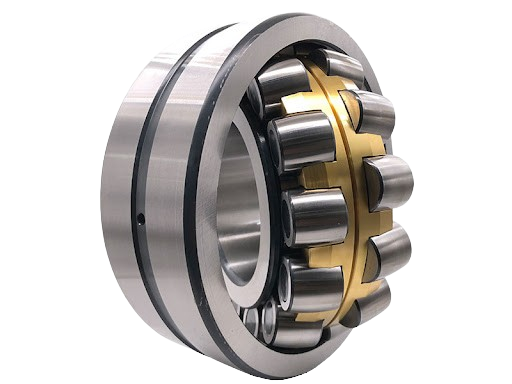

SPHERICAL ROLLER BEARINGS

Available series number:

213 - 222 - 223 - 230 - 231 - 232 - 239 - 240 - 241

Available Versions:

MB : 2 piece Machined Brass cage with asymmetrical rollers guided on the inner ring
CA : 1 piece brass cage with symmetrical rollers and a floating guided centre rib and side shoulders
C : Pressed Metal cage with asymmetrical rollers and a floating centre rib

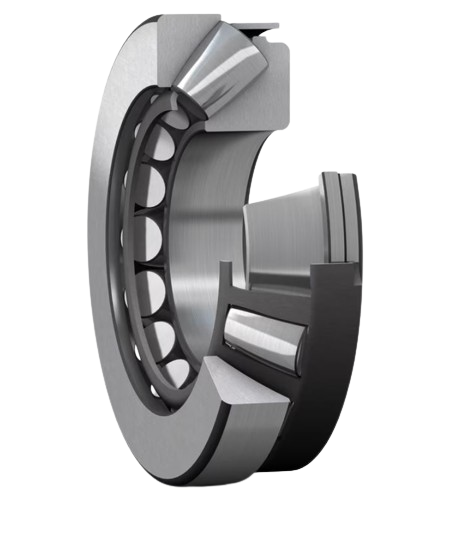

SPHERICAL ROLLER THRUST BEARING

Available series number:

292 – 293 – 294

Available Versions:

No suffix : steel cage
E : steel cage with increased load ratings
M : brass cage
EM : brass cage with increased load ratings
The Lubrication of these bearings should be with oil.
The dimensions are according ISO 104 and DIN 728

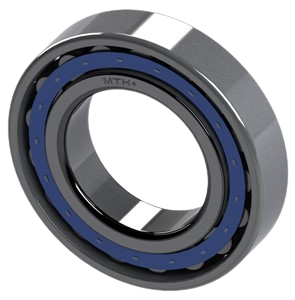

CYLINDRICAL ROLLER BEARING

Available series number:

200 - 300 - 400 - 1000 - 2200 - 2300

Available Versions:

NO SUFFIX : steel cage
E & ES : steel cage with increased loading capacity
M : brass cage guided on the rollers
EM : brass cage guided on the rollers with increased loading capacity MA : brass cage guided on the outer ring
EMA : brass cage guided on the outer ring with
increased loading capacity

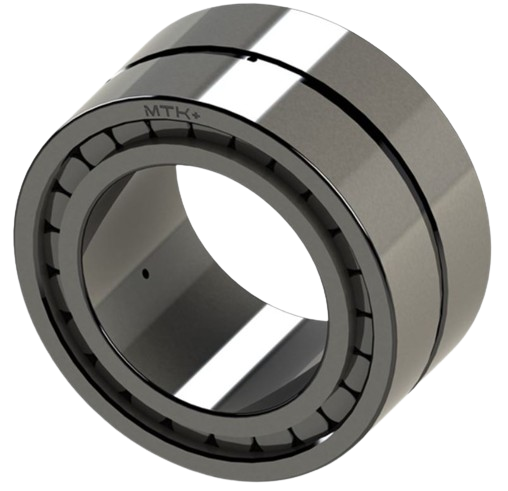

FULL COMPLEMENT CYLINDRICAL ROLLER BEARING

Available series number:

These bearings incorporate the maximum number of rollers and have a small section in relation to their width. This provides a high load carrying capacity and allows space saving designs to be achieved. AVAILABLE SERIES The most utilized bearings are those of series SL04 50.., SL18 18.., SL01 49… and NJ 23 VH

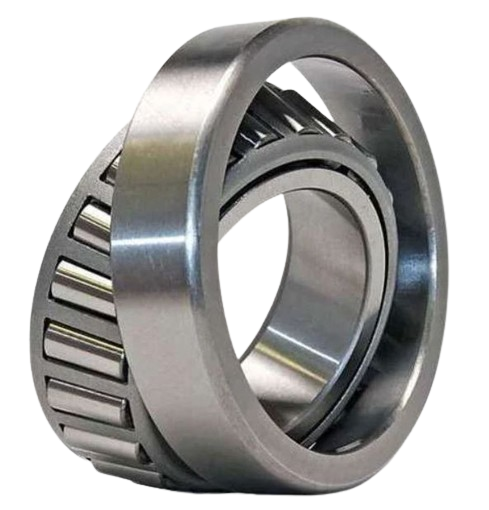

TAPERED ROLLER BEARING

Available series number:

302 - 303 - 313 - 320 - 322 - 323 - 330 - 331 - 332

ABLE VERSIONS:
They can be delivered in “DB”, “DF” and “DT” arrangement.
DB : Matched bearing pair arranged back-to-back
DF : Matched bearing pair arranged face-to-face
DT : Matched bearing pair arranged in tandem

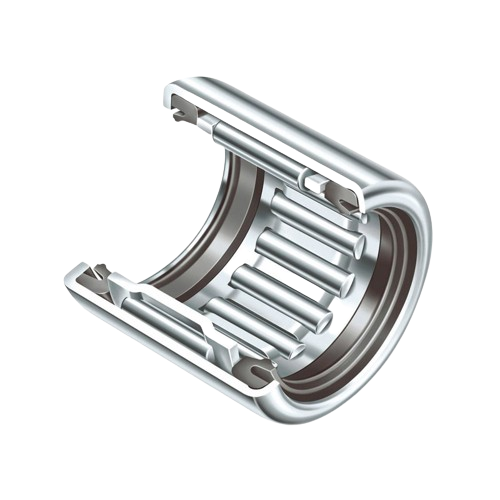

NEEDLE ROLLER BEARING

Available series number:

NA, RNA, NKIA, NKIB, HK, NK, NKI, BK

Needle roller bearings can be considered a version of cylindrical roller bearings. As these small sized bearings can take over heavy dynamic loads. They provide high stiffness in bearing units.

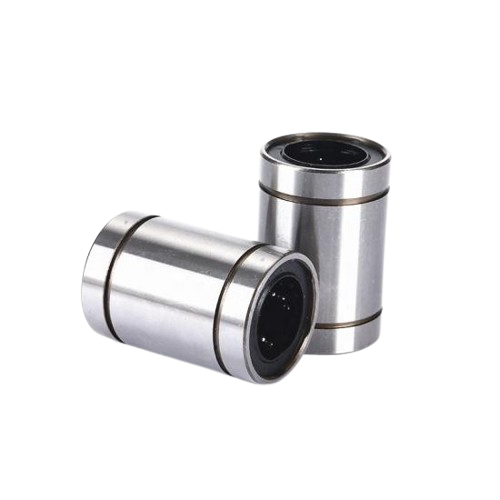

LINEAR BALL BUSHING

Available series number:

MTK offers a full line of linear bushing. The standard, Integral Single-retainer close type, the clearance adjustable type and the open types. The user can choose from among this according to the application requirements to be met. Available Series LM-Metric dimension series most widely used in Japan LME-Metric dimension series most widely used in Europe LMB-Inch dimension series used mainly in USA

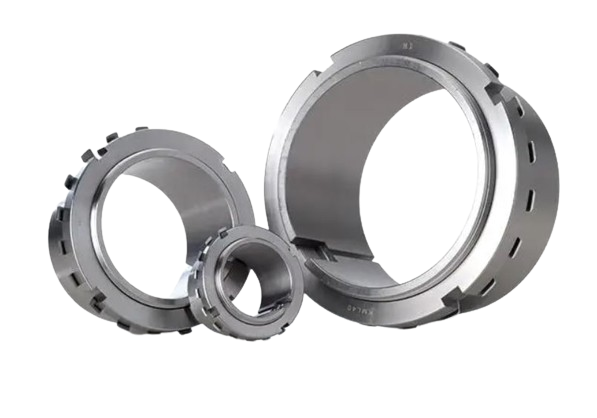

ADAPTER AND WITHDRAWAL SLEEVES

Available series number:

H200, H300, H2300, H3100, AH300, AH2300, AH3100,AH3200, AH24000

Adapter (H) and Withdrawal (AH) sleeves are used when mounting tapered bore bearings on cylindrical shafts. In this case, shaft tolerance are longer than in case of bearings seated directly on the shaft.

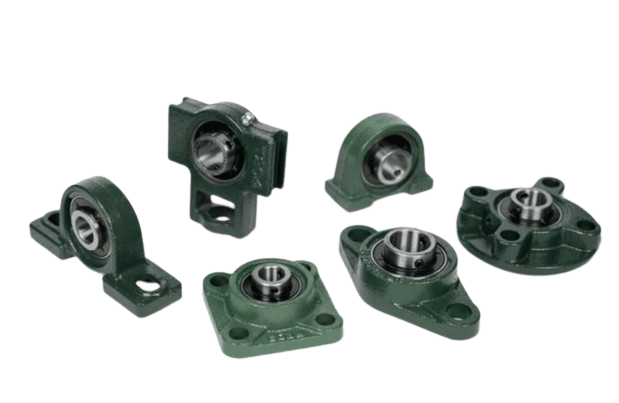

BEARING HOUSINGS AND UNITS

Ball Bearings

U C200-UC 300-SB 200-SA 200- UK 200 UC X00- UEL 200

Bearing Housings

200-P 300-PA 200-PW 200-PH 200-P X00-PP 200-PF
200-PFL 200-F 200-F 300-FC 200-T 200-ST 200-F
X00-FS 200- FL 200-FA 200-FB 200-FL X00

Plummer Block Housings

SN 500-SN 600-SNU 500- SNU 600

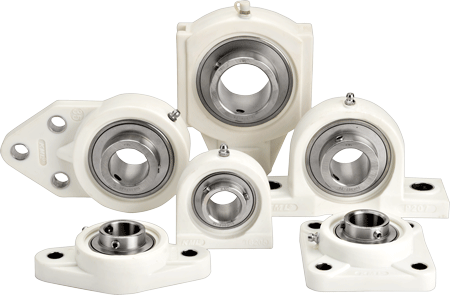

THERMOPLASTIC BEARING UNITS

Stainless Steel Insert Ball Bearings

SS-UC 200-SS-SA 200-SS-SB 200

Thermoplastic Bearing Housings

TPP 200-TPF 200-TPFL 200

TPFB 200-TPT 200-TPHA 200

Stainless Steel Bearing Units

SS-F 200-SS-P 200-SS-FC 200

SS-FL 200-SS-T 200

MTK GREASES

Base Oil : Mineral Oil

Thickener : Lithium

Temperature Range : -200C to +1300C NLGI Grade : 2

Worked Penetration (ASTM D 217) : 265-295
Viscosity, 400C (ASTM D 445) : 110 mm²/s
Viscosity, 1000C (ASTM D 445) : 11 mm²/s
Dropping Point (ASTM D 556) : 1900C
EMCOR Test (ISO 11007) : 0-0
Copper Corrosion (ASTM D 4048) : 1B

MTK GREASES

Base Oil : Mineral Oil

Thickener : Lithium

Temperature Range : -200C to +1300C

NLGI Grade : 3 Worked Penetration (ASTM D 217) : 220-250
Viscosity, 400C (ASTM D 445) : 120 mm²/s
Viscosity, 1000C (ASTM D 445) : 12 mm²/s
Dropping Point (ASTM D 556) : 2000C
EMCOR Test (ISO 11007) : 0-0
Copper Corrosion (ASTM D 4048) : 1b
